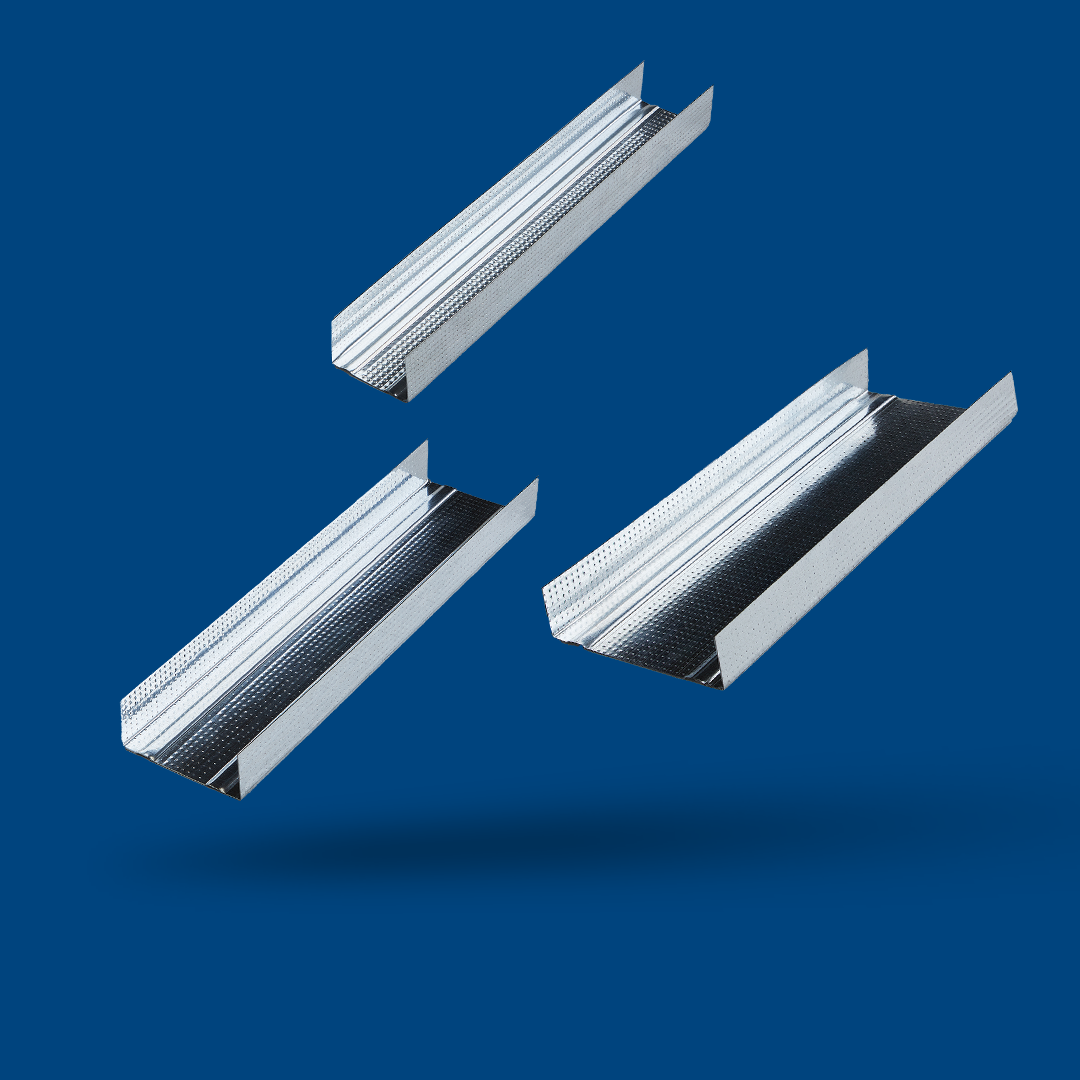

Wall U Profile

Wall U Profile 1
Wall U Profile 2
Wall U Profile 1
Wall U Profile 2

Featured Features



It is a supplementary element used to serve as a guide to wall c profiles and allow leveling them in the metal construction installed for partition wall, clad wall, suspended ceiling and exterior wall applications, and made of hot dip galvanized steels using cold forming method.

Contact

Specs
Dimensions



Thickness 0,45 – 0,80 mm
Length 3000 mm
Packaging 12 pcs/bundle (0,45 - 0,60 mm) 8 pcs/bundle (0,70 - 0,80mm)
Steel Type DX51D (complies with EN 10346)
Galvanized Thickness Z100, Z140, Z275
Fire Resistance Rating A1 Sınıfı
Yield Strength ≥140 N/mm2


The length is 3000 mm as standard. It is possible to manufacture between 2000 - 8000 mm depending your project and demand.



SIZES

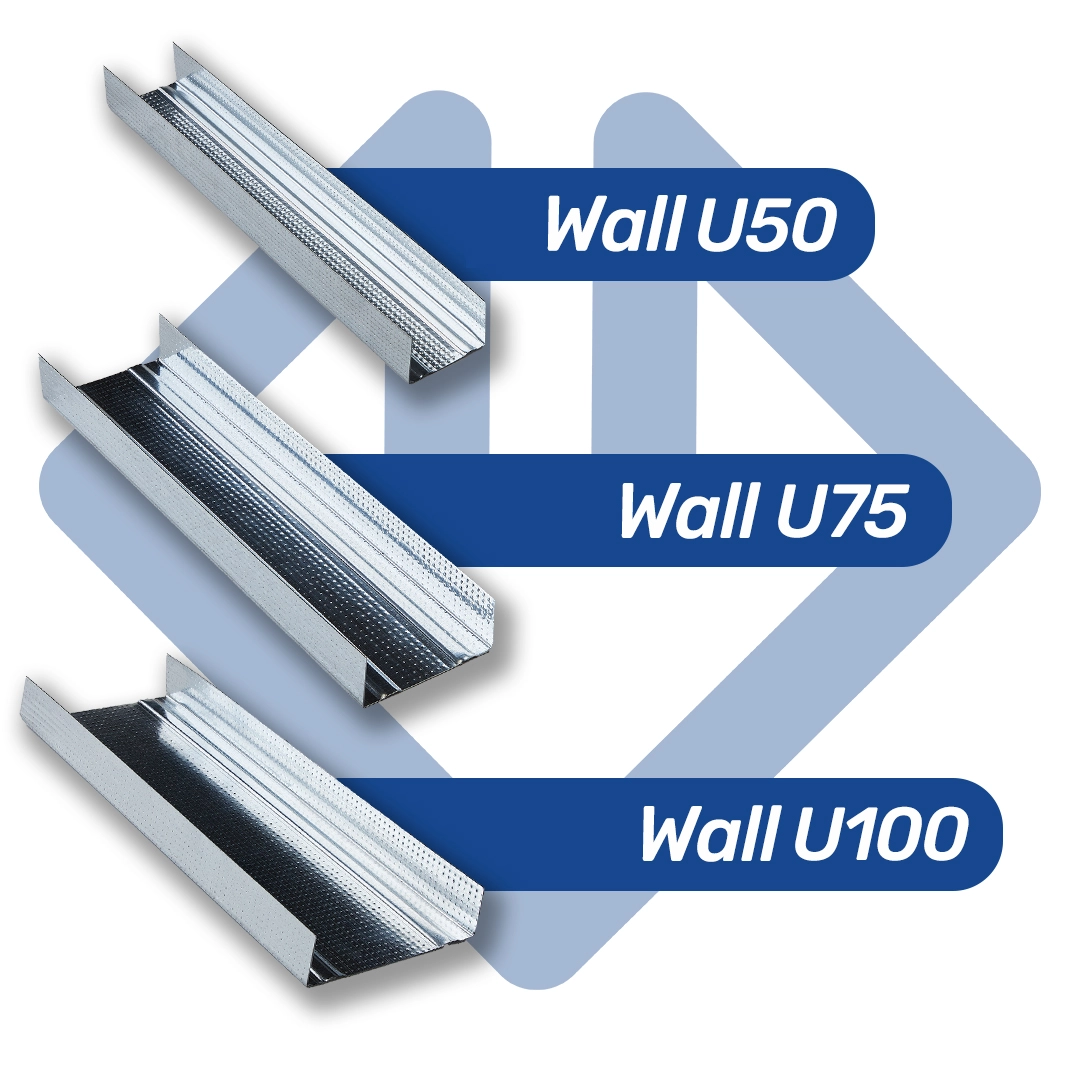

WALL U 48

a: 48 mm, b: 28 mm

WALL U 50

a: 50 mm, b: 30 - 38 - 40 - 55 mm

WALL U 68

a: 68 mm, b: 40 - 55 mm

WALL U 70

a: 70 mm, b: 28 - 40 - 55 mm

WALL U 75

a: 75 mm, b: 30 - 38 mm

WALL U 100

a: 100 mm, b: 28 - 38 - 40 - 55 mm

WALL U 120

a: 120 mm, b: 40 mm

WALL U 125

a: 125 mm, b: 32 - 40 - 55 mm

WALL U 150

a: 150 mm, b: 32 - 40 - 55 mm

PACKAGING

Pallet quantity varies varies according to the thickness of the product.
