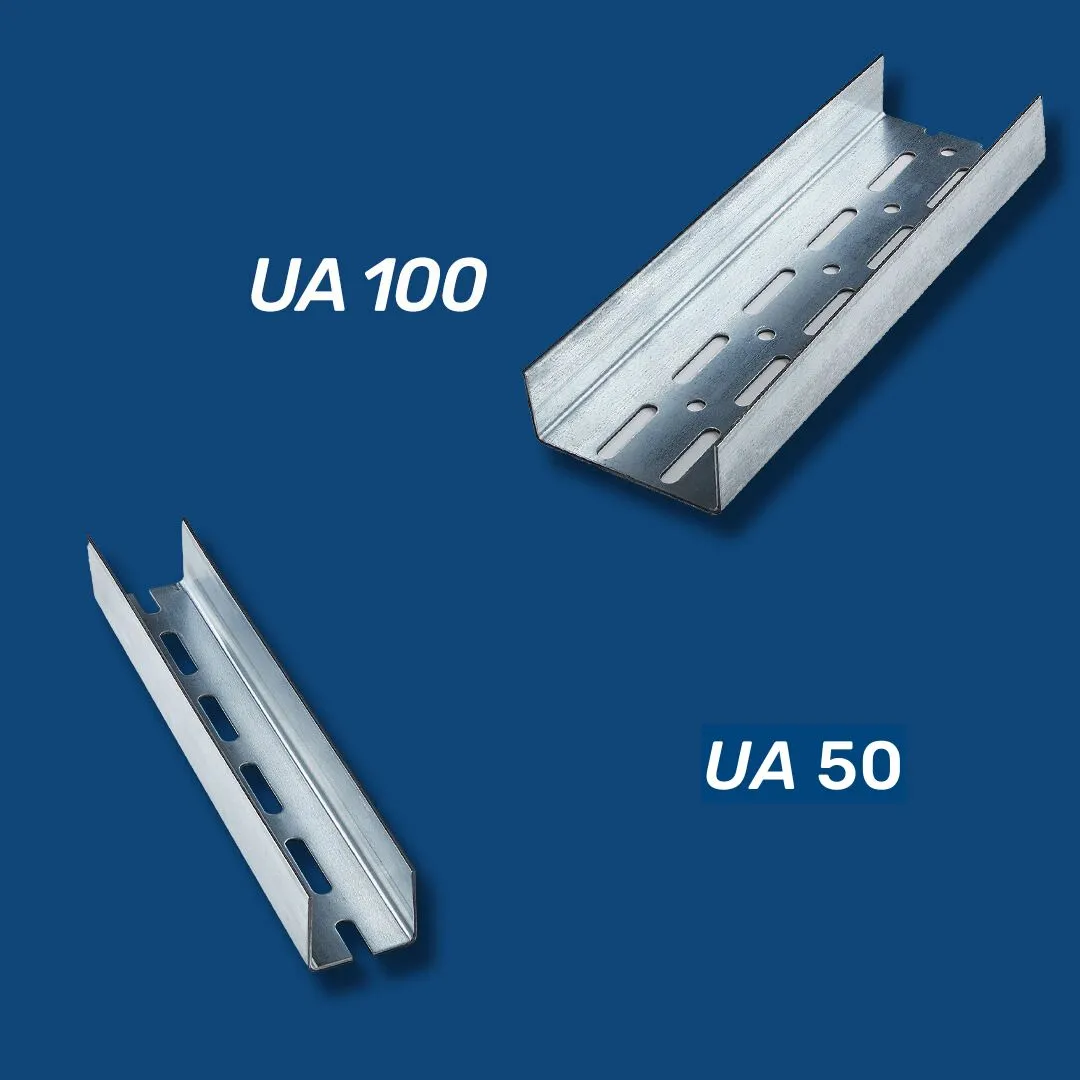

UA Profile

Featured Features

It is a carrying element used to carry door and window frames in the metal construction installed for partition wall applications, and made of hot dip galvanized steels using cold forming method.

Contact

Specs

Dimensions

Advantages

Thickness	1,50 – 2,00 mm
Length	3000 mm
Packaging	6 pcs/bundle (50 mm) 8 pcs/bundle (70 - 100 mm)
Steel Type	DX51D (complies with EN 10346)
Galvanized Thickness	Z100, Z140, Z275
Fire Resistance Rating	A1 Sınıfı
Yield Strength	≥140 N/mm2

The length is 3000 mm as standard. It is possible to manufacture between 2000 - 8000 mm depending your project and demand.

Thickness (mm)	a (mm)	b (mm)	Ix* (cm⁴)	Iy (cm⁴)
1,50	49	40	3,1943	7,8221
2,00	49	40	4,1678	10,1177
1,50	74	40	3,6715	19,9055
2,00	74	40	4,7998	25,9527
1,50	99	40	4,0091	39,0356
2,00	99	40	5,2458	51,1057

Strengthens door and window frames, eliminating the need for box profile support.
Facilitates bolt-nut connections with slots on the base surface.
Can be produced in desired lengths ranging from 2000 to 8000 mm.
When used with complementary UMS products, it can be supported with a static report by UMS upon request.
