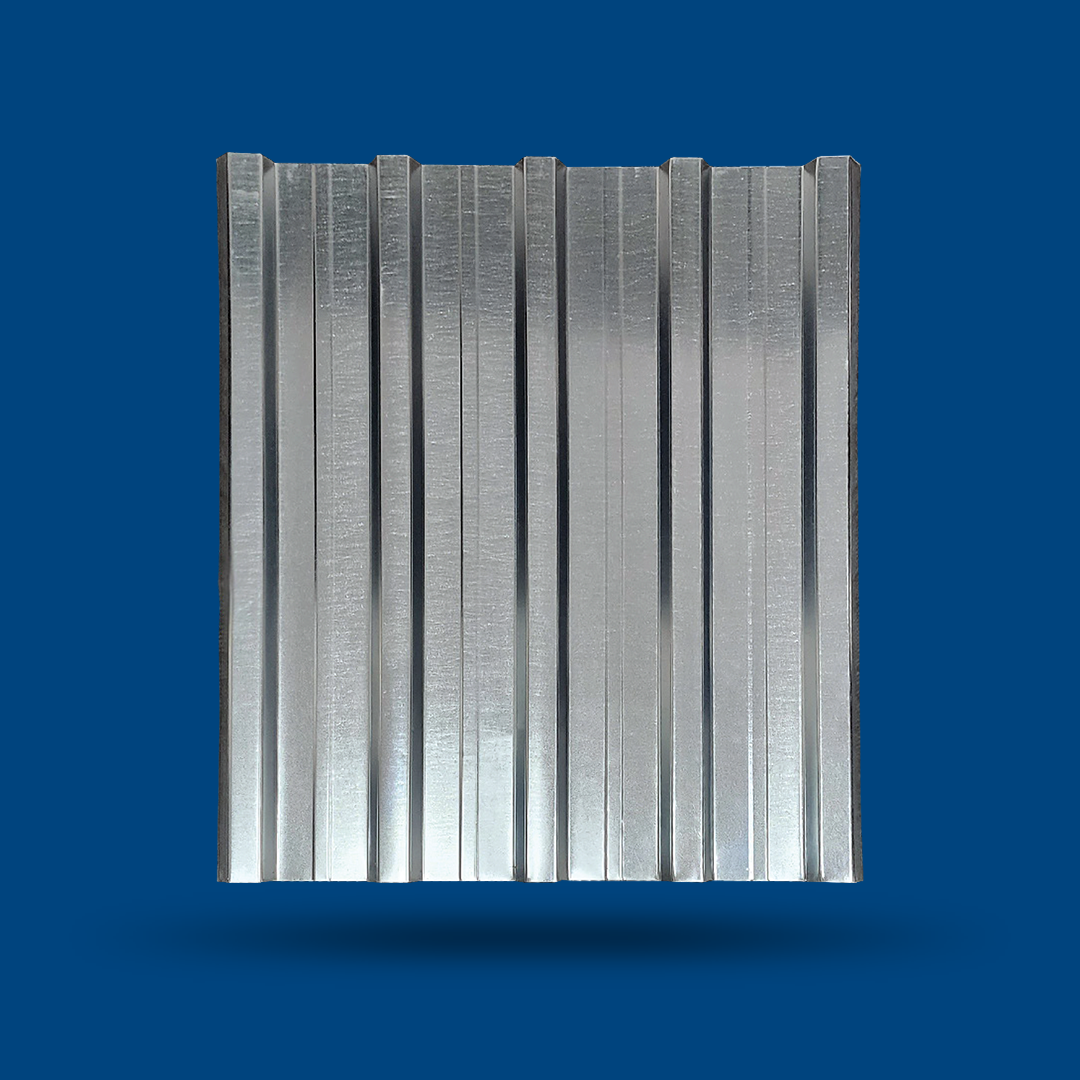

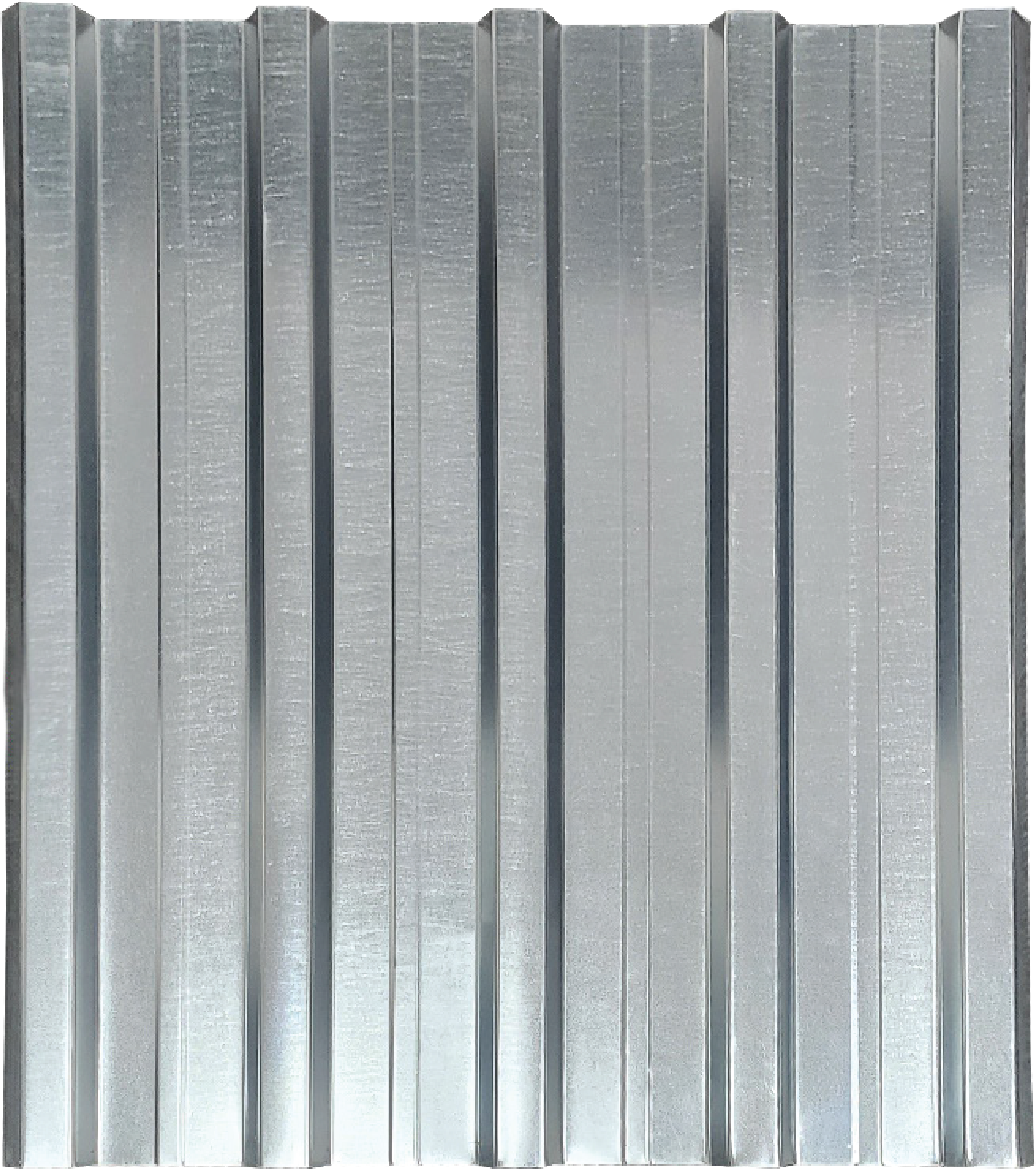

It is the forming of galvanized and painted galvanized roll sheet in 27/200 section. It

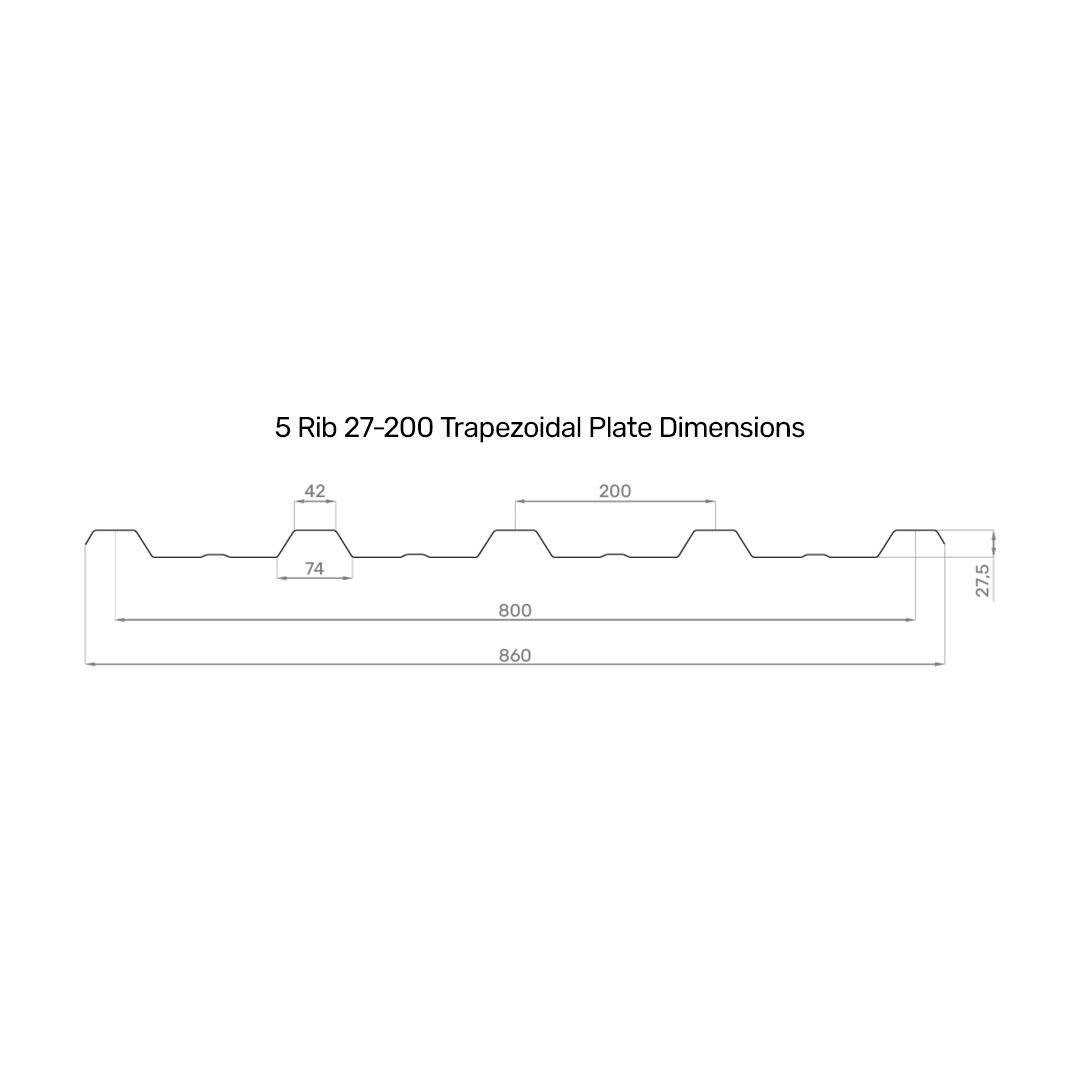

is produced as 5 or 6 curves. While the net application width of the 5-rolled 27/200

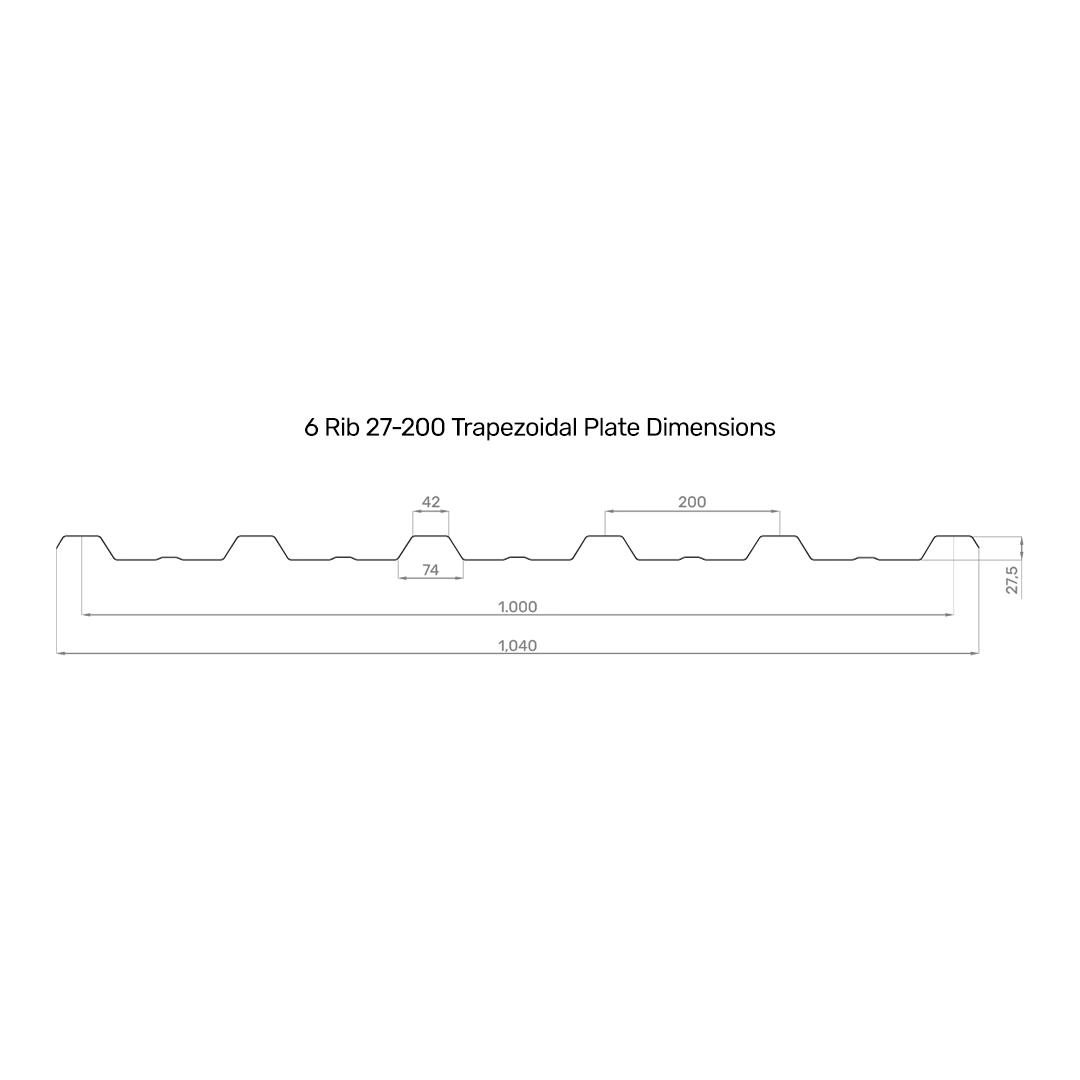

trapezoid is 800 mm, the 6-rolled 27/200 trapezoid is 1000 mm. It can be applied on the
roof and facade.

Contact

Technical Specifications

27/200 Form Spring Loadings to be Carried by Trapezoidal Plates (kg/m²)

Weights of 27/200 Form Trapezoidal Plates

Thickness	0,30 – 1,20 mm
Width Min/Max	860 - 1040 mm
Height	100 – 13000 mm
Coating Thickness	50 – 350 gr/m² (Total of two surfaces)
Grades	Steels Suitable for Cold Forming (DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z) Unalloyed Structural Steels (S220 GD+Z, S250 GD+Z, S280 GD+Z, S320 GD+Z, S350 GD+Z)
Paint	Desired Color Selection in the RAL Catalog
Paint Type	Polyester, Pvdf, Plastisol, PVC

Purlin Range (m)	0.30	0.35	0.40	0.45	0.50	0.55	0.65	0.75	0.85	0.95	1.05	1.25
1.00	355	415	473	533	593	652	770	889	1009	1127	1187	1425
1.10	294	343	391	440	490	538	637	734	833	931	981	1177
1.20	246	288	329	370	411	452	536	617	701	782	824	989
1.40	181	211	241	272	302	332	393	453	515	575	605	726
1.50	158	185	211	237	264	290	343	396	449	501	528	634
1.80	110	128	146	165	183	201	238	275	312	348	367	440
2.00	89	104	119	134	149	163	193	223	252	282	297	356
2.20	73	86	98	110	123	135	160	184	209	233	245	295
2.40	62	72	82	93	103	113	134	155	175	196	206	248
2.50	57	67	76	86	95	104	124	142	162	181	190	228
2.80	45	53	61	68	76	83	98	114	129	144	152	182
3.00	39	46	53	59	66	72	86	99	112	125	132	158

*Safety Stress: 1200 kg/cm² calculations are based on continuous beam shape. No individual load comes to a single point.
** Swipe left slowly on your mobile device to see the full table.

Galvanized Sheet Thickness(mm)	0.30	0.35	0.40	0.45	0.50	0.60	0.70	0.80	0.90	1.00	1.20
1 m Height Weight (kg/m)	2.36	2.75	3.14	3.53	3.93	4.71	5.50	6.28	7.07	7.85	9.42
Usage Area Weight(kg/m²)	2.94	3.43	3.93	4.42	4.91	5.89	6.87	7.85	8.83	9.81	11.78

* Swipe left slowly to see the full table.
