Hot Dip Galvanized and Painted Galvanized 10/140 Trapezoidal Plate 1
Hot Dip Galvanized and Painted Galvanized 10/140 Trapezoidal Plate 2
Hot Dip Galvanized and Painted Galvanized 10/140 Trapezoidal Plate 1
Hot Dip Galvanized and Painted Galvanized 10/140 Trapezoidal Plate 2

Featured Features

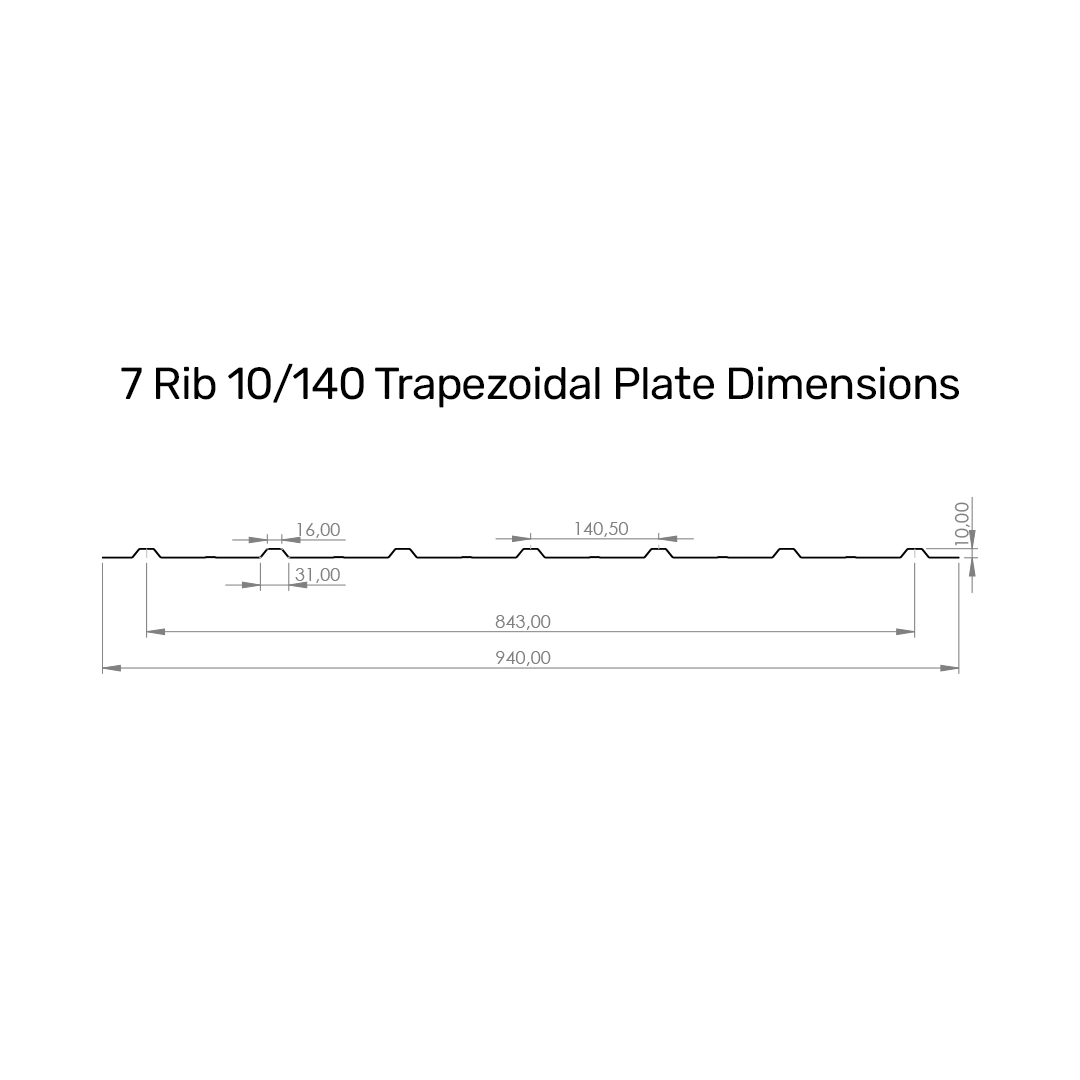

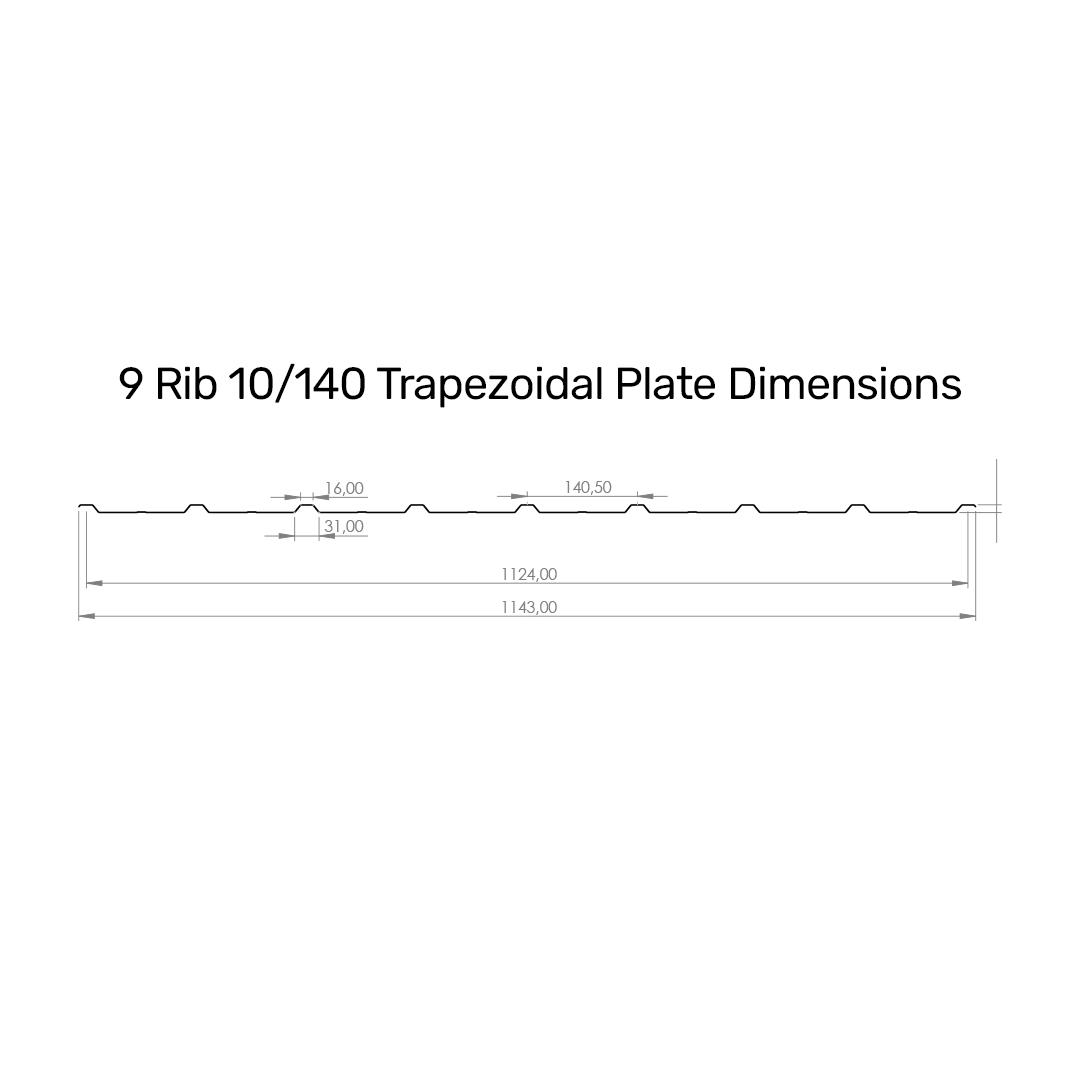

It is the trapezoidal forming of galvanized and painted galvanized roll sheet in 10/140 mm
section.

Contact

Technical Specifications



Thickness 0,30 - 0,60 mm
Width(Min-Max) 940 - 1143 mm
Height 100 - 12000 mm
Coating Thickness 50 - 350 gr/m² (Total of Two Surfaces)
Grades  Steels Suitable for Cold Forming (DX51D+Z, DX52D+Z, DX53D+Z,
DX54D+Z, DX56D+Z)
Unalloyed Structural Steels (S220 GD+Z, S250 GD+Z, S280 GD+Z, S320
GD+Z, S350 GD+Z)
Paint Desired Color Selection in the RAL Catalog
Paint Type Polyester, Pvdf, Plastisol, PVC
