Galvanized & Painted Galvanized 38/151 Trapezoidal Sheet

Galvanized & Painted Galvanized 38/151 Trapezoidal Sheet 3

Galvanized & Painted Galvanized 38/151 Trapezoidal Sheet 4

Featured Features

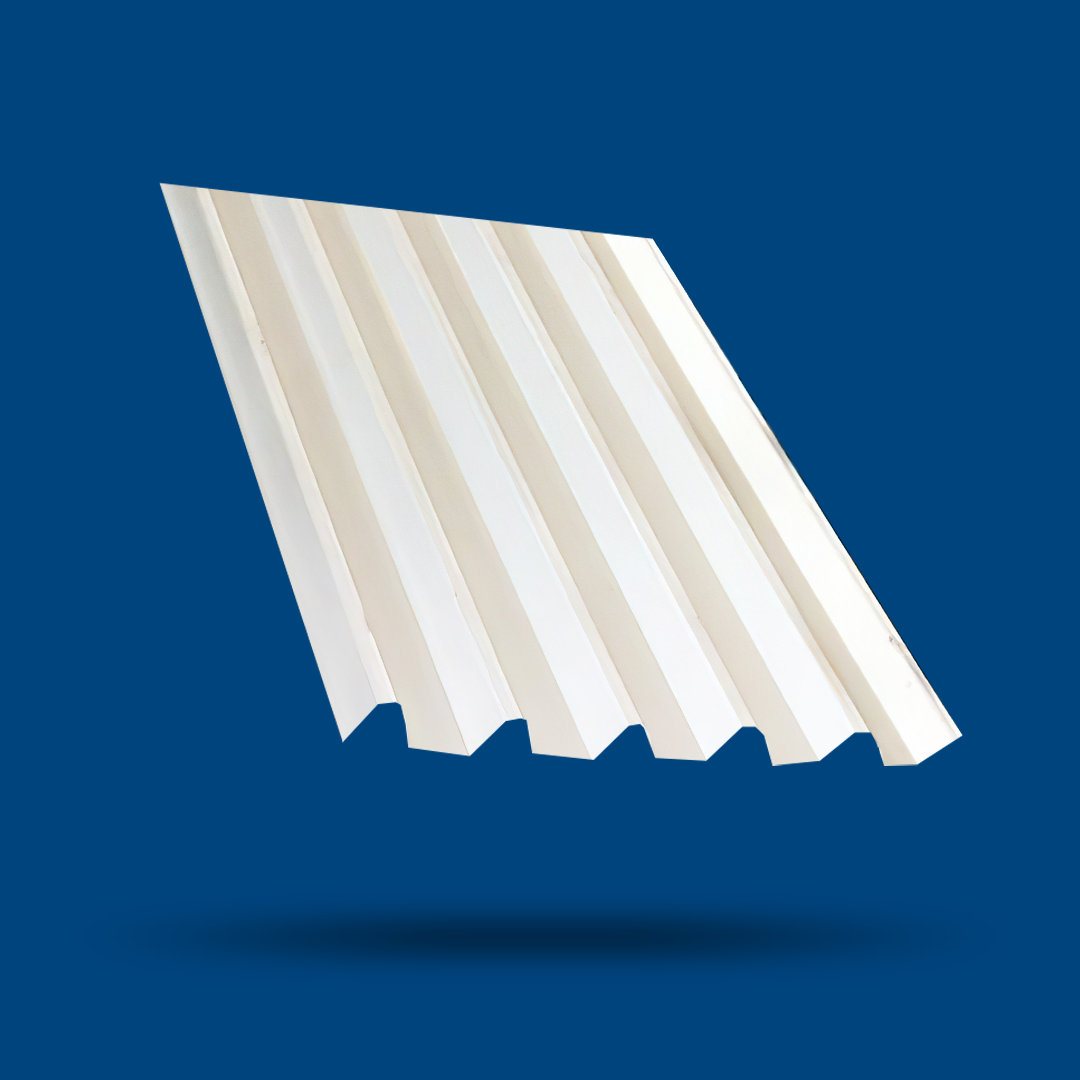

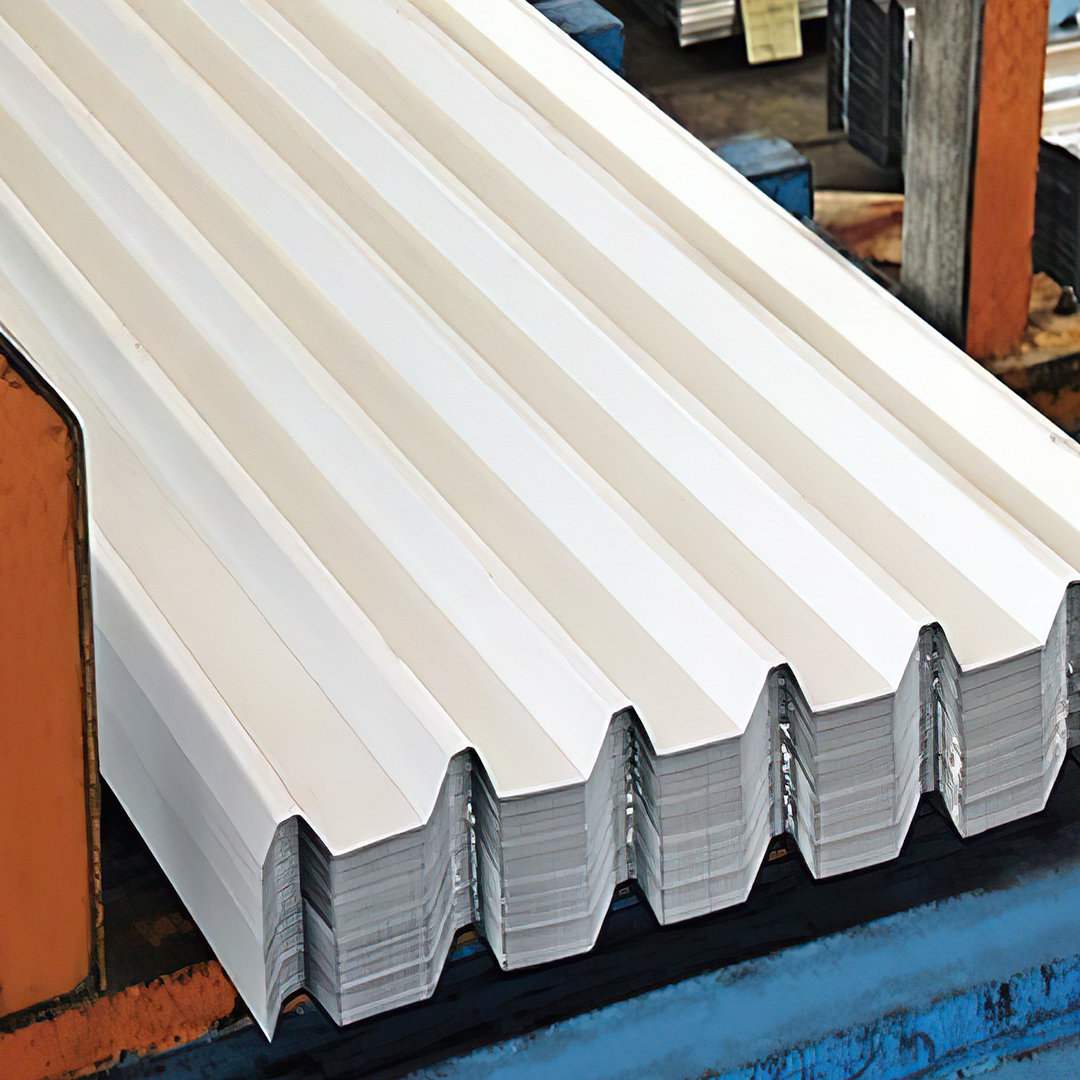

It is trapezoidal plate made of galvanized or painted galvanized hot dip sheet.

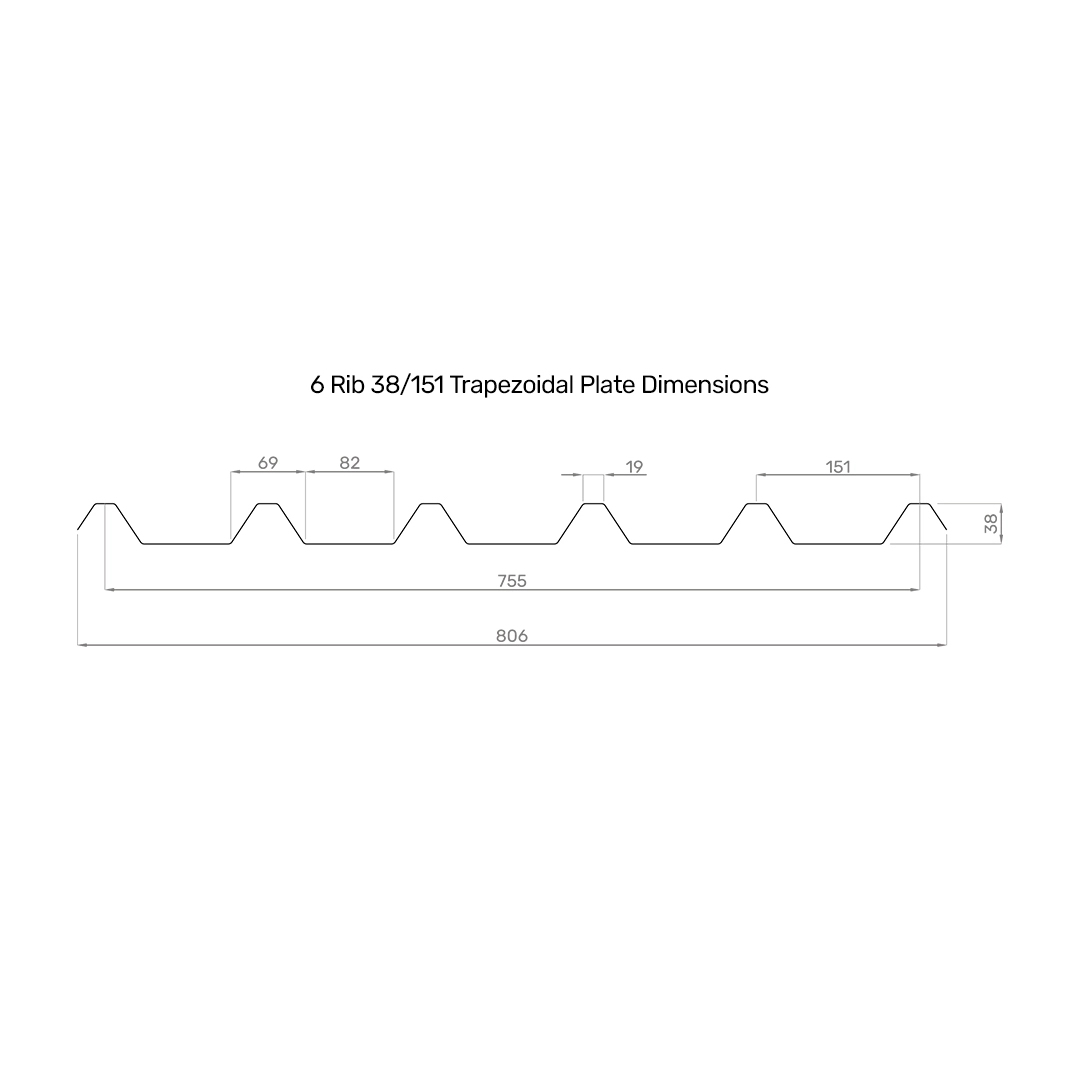

It is manufactured in the form 38/151 mm section with 6 or 7 corrugations.

Net application width of 38/151 mm trapezoid with 6 corrugations: 755 mm

Net application width of 38/151 mm trapezoid with 7 corrugations: 906 mm

Contact

Technical Specifications

Distributed Loads Hot Dip Painted 38/151 Trapezoidal Plates Can Sustain (kg/m²):

Thickness	0,50 – 0,80 mm
Width	806 - 957 mm
Length	100 – 13000 mm
Coating Thickness (total of two surfaces)	50 – 350 gr/m2
Steel Type	Steels Suitable for Cold Forming (DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z) Non-Alloy Structural Steels (S220 GD+Z, S250 GD+Z, S280 GD+Z, S320 GD+Z, S350 GD+Z)
Paint Type	Polyester, Pvdf, Plastisol, PVC
Color Options	Can be produced in all RAL codes.

Distributed Loads Hot Dip Painted 38/151 Trapezoidal Plates Can Sustain (kg/m2):
Sheet Thickness (mm)	Load Values (kg/m2)
Sheet Thickness (mm)	200 cm	250 cm	300 cm	325 cm
0,5	140	89	62	---
0,6	175	111	70	---
0,7	209	134	93	66
0,8	244	156	109	80
Load Amount kg/m2 Limit Values L/200
