Galvanized & Painted Galvanized 18/76.2 Corrugated Plate

Galvanized & Painted Galvanized 18/76.2 Corrugated Plate 3

Featured Features

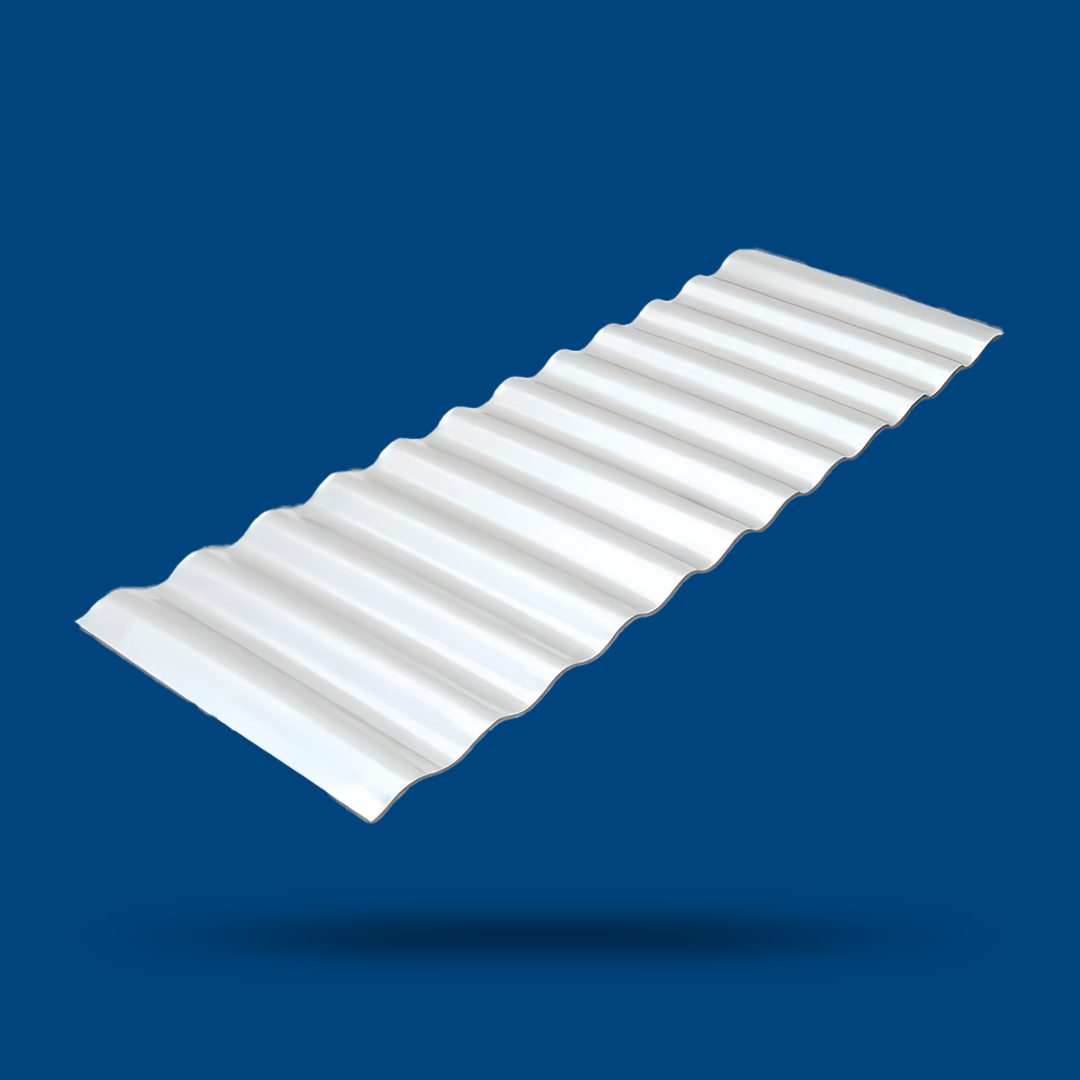

Corrugated plate made of galvanized or painted galvanized hot dip sheet.

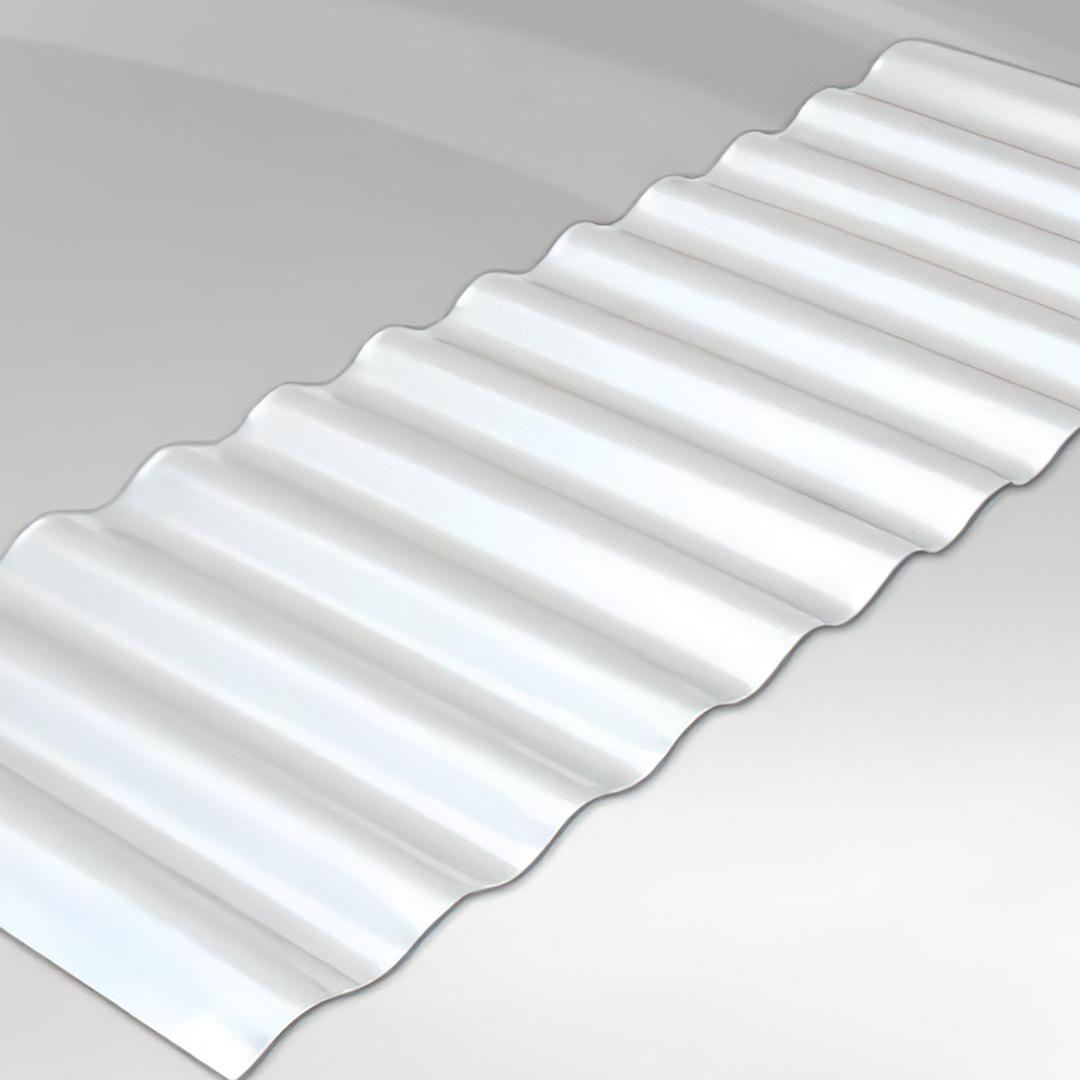

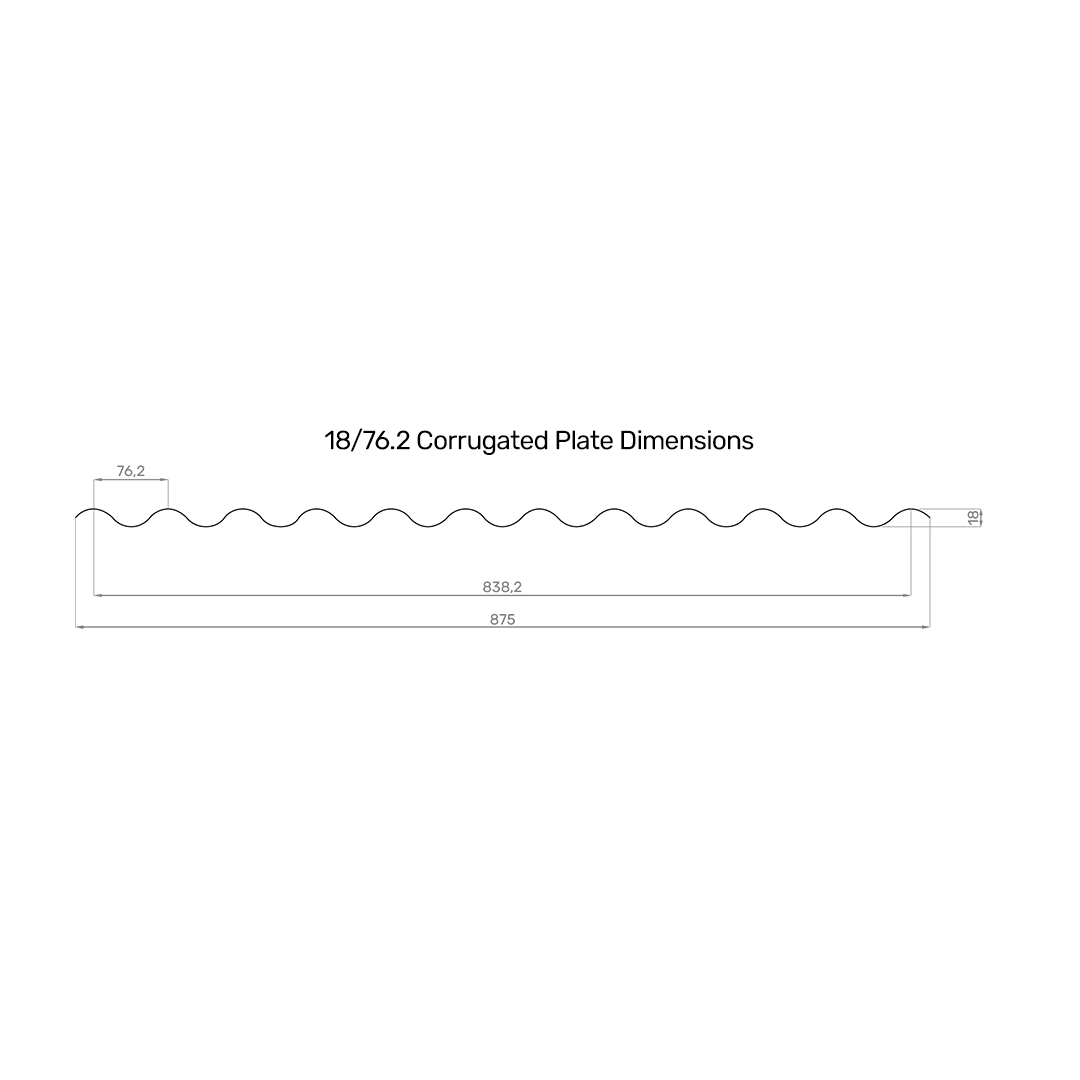

It is the type of galvanized and painted galvanized sheet roll shaped in sinusoidal form with 18/76.2 section.

Net application width is 800 mm.

Contact

Technical Specifications

Distributed Loads that Hot Dip Painted 18/76.2 Corrugated Plates can Sustain (kg/m²)

Weight

Thickness	0,30 – 1,20 mm
Width	875 mm
Length	100 – 12000 mm
Coating Thickness (total of two surfaces)	50 – 350 gr/m2
Steel Type	Steel Type: Steels Suitable for Cold Forming (DX51D+Z, DX52D+Z, DX53D+Z, DX54D+Z, DX56D+Z) Non-Alloy Structural Steels (S220 GD+Z, S250 GD+Z, S280 GD+Z, S320 GD+Z, S350 GD+Z)
Paint Type	Polyester, Pvdf, Plastisol, PVC
Color Options	Can be produced in all RAL codes.

Plate Thickness
Purlin Spacing	0.30	0.35	0.40	0.45	0.50	0.55	0.65	0.75	0.85	0.95	1.05	1.25
1.00	208	243	278	312	347	382	451	520	590	659	693	833
1.10	172	200	230	258	287	315	373	430	487	545	574	688
1.20	144	169	193	217	241	265	313	361	410	458	482	578
1.40	106	124	142	159	177	195	230	266	301	336	354	425
1.50	92	108	123	139	154	170	200	231	262	293	308	370
1.80	34	75	86	96	107	118	139	161	182	203	214	257
2.00	53	61	69	78	87	95	113	130	148	165	173	208
2.20	43	50	57	65	72	79	93	108	122	136	143	172
2.40	36	42	48	54	60	66	78	90	102	114	120	145
2.50	33	39	44	50	56	61	72	83	94	106	111	133
2.80	26	31	35	40	44	49	57	66	75	85	89	106
3.00	23	27	31	35	39	42	50	58	66	75	77	93

Galvanized Sheet Thickness (mm)	0.30	0.35	0.40	0.45	0.50	0.60	0.70	0.80	0.90	1.00	1.20
1 m-Length Weight (kg/m)	2.36	2.75	3.14	3.53	3.93	4.71	5.50	6.28	7.07	7.85	9.42
Usage Area Weight (kg/m2)	2.80	3.27	3.74	4.21	4.67	5.61	6.54	7.48	8.41	9.35	11.21
